High-Speed Cutting

Setting a New Standard for High-Speed Cutting

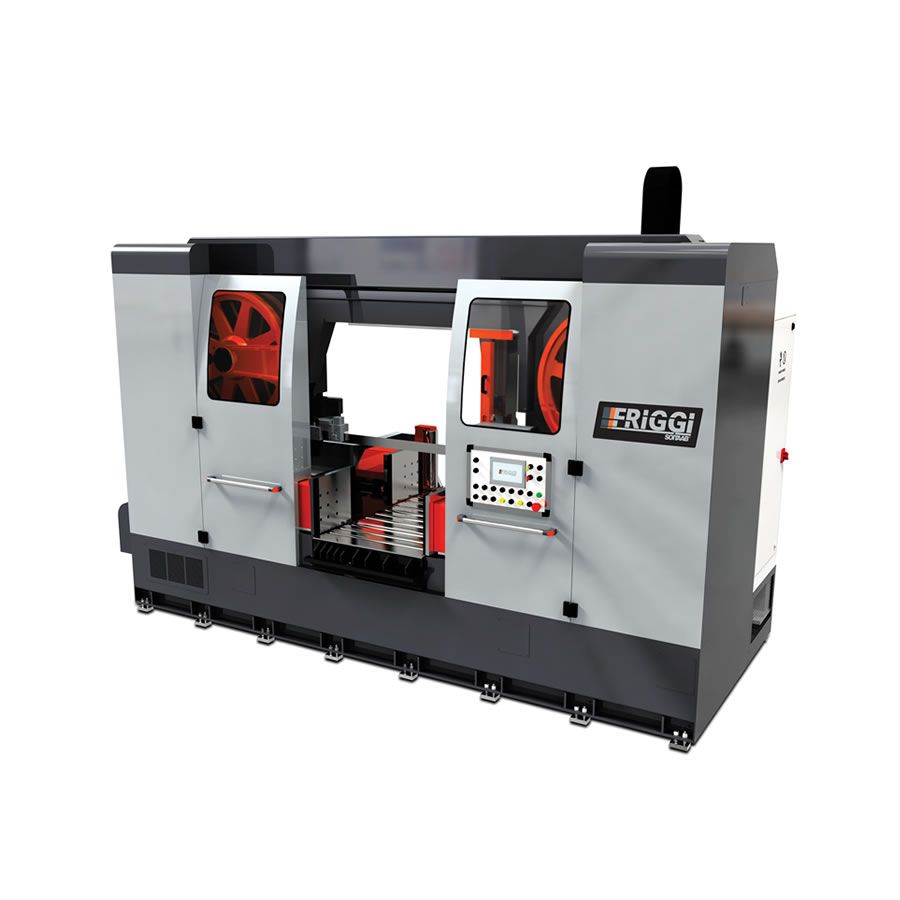

ONL HSS

Setting a New Standard for High-Speed Cutting

2MF HS TS – HIGH-SPEED SAW

This machine’s ability to cut in both vertical and horizontal planes makes it the ideal machine for cutting large aluminum blocks and ingots.

  • Read More

    FRIGGI HIGH-SPEED ALUMINUM CUTTING BANDSAW – 2MF TS HS


    THE PERFECT SOLUTION FOR CASTHOUSE AND ALUMINUM CUTTING CENTERS


    Designed for HIGH-SPEED CUTTING plates out of aluminum slabs, the 2MF TS HS is the result of twenty years of innovation in aluminum cutting solutions.


    This machine’s ability to cut in both vertical and horizontal planes makes it the ideal machine for cutting large aluminum blocks and ingots.


    The fixed head and the moving table allows for the possibility of making several cuts without moving the material, thereby simplifying and drastically reducing material handling.

––––– Quick Specs –––––

  • 2100x1100

    Cutting capacity (mm): 2100×1100

    Table stroke (mm): 4000

    Blade dimension (mm): 16.760x54x1,6

    Blade speed (m/min): 300÷3000

    Blade motor power (kW): 54

    Weight (Kg): 27.500

  • 2600x1100

    Cutting capacity (mm): 2600×1100

    Table stroke (mm): 4000

    Blade dimension (mm): 17.740x54x1,6

    Blade speed (m/min): 300÷3000

    Blade motor power ( kW ): 54

    Weight (Kg): 29.500

2MF HS - HIGH-SPEED ALUMINUM SAW

This machine features a hydraulic head feed controlled by a proportional valve and high-speed technology.

  • Read More

    FRIGGI 2MF HIGH-SPEED ALUMINUM CUTTING, DUAL COLUMN BANDSAW

    The Friggi 2MF HS Aluminum Cutting Bandsaw was launched in 2016. This dual-column, horizontal, and fully automatic bandsaw is designed for high-speed cutting where high volume output is required. It provides leading-edge performance and extreme cutting accuracy even under the toughest conditions. This machine features a hydraulic head feed controlled by a proportional valve and high-speed technology.


    This bandsaw is the industry leader in its segment and contains the typical values that FRIGGI stands for: durability, proven performance, incredible accuracy, and a low cost per cut.

––––– Quick Specs –––––

  • 400

    Cutting capacity (mm): 400×400

    Blade dimension (mm): 9.200x34x1,1

    Blade speed (m/min): 300÷3000

    Blade motor power (kW): 45

    Weight (Kg): 9.500

  • 600

    Cutting capacity (mm): 600×600

    Blade dimension (mm): 16.776x54x1,6

    Blade speed (m/min): 300÷3000

    Blade motor power (kW): 54

    Weight (Kg): 12.5002

Gantry HS HEAVY MATERIAL SAW

The Gantry features a fixed table and a moving head designed for cutting very large, heavy materials.

  • Read More

    FRIGGI HEAVY MATERIAL BANDSAW – GANTRY HS

    The Gantry features a fixed table and a moving head designed for cutting very large, heavy materials. This machine allows for vertical, horizontal, and angled cuts without having to move the material; ideal for ingots and forgings as well as large blocks of aluminum.


    Typical use would be to cut strips from large blocks, to rough out holds to vastly reduce machining time, and most recently, to rough out frac blocks prior to machining.


    The flexibility of the moving head and rotating blade guides, along with the 360-degree turntable, you can easily make up to 9 cuts with a single set-up.

––––– Quick Specs –––––

  • 2100X1100X4000

    Cutting capacity (mm): 2100×1100

    Head stroke (mm): 4000

    Blade dimension (mm): 16.760x54x1,6

    Blade speed (m/min): 300÷3000

    Blade motor power (kW): 51

    Weight (Kg): 29.000

  • 2600X1100X4000

    Cutting capacity (mm): 2600×1100

    Head stroke (mm): 4000

    Blade dimension (mm): 19.400x54x1,6

    Blade speed (m/min): 300÷3000

    Blade motor power (kW): 51

    Weight (Kg): 34.000

VAS L HS BANDSAW

The VAS L HS is a vertical, high-speed bandsaw with a moving head and fixed worktable and automated backguage that is ideal for cutting large aluminum plates.

  • Read More

    FRIGGI HIGH-SPEED VERTICAL MOVING HEAD BANDSAW VAS L HS

    The VAS L HS is a vertical, high-speed bandsaw with a moving head and fixed worktable and automated backguage that is ideal for cutting large aluminum plates. The design and location of the backguage allows for easy access to the worktable when loading and unloading material either by forklift or overhead crane.


    This model has an overall compact and robust design. Thanks to decades of experience in sawing technology and technical expertise, this machine delivers high-performance with complete ease of operation.

––––– Quick Specs –––––

  • 4000x2000x1200

    Cutting capacity (mm): 1.200

    Throat (mm): 2.000

    Head stroke (mm): 4.000

    Blade dimension (mm): 13.550x54x1,6

    Blade speed (m/min): 300÷3000

    Blade motor power (kW): 54

    Weight (Kg): 32.000

  • HIGHLIGHTS

    • High-speed cutting
    • Simple to operate
    • Hard metal blades
    • Robust and heavy-duty structure ideal for heavy
    • Raised table support for an easy loading operation
    • Movable work-gauge with clamping device
