Steel Cutting Solutions

Steel Cutting Saws Built for Optimum Cutting Performance

Our Saws are built with maximum rigidity to endure tough production environments, the latest technology to work smarter and safer for workers, and designed to perform beyond expectations. The many features available offer clients the most flexibility, and versatility available on the market while saving costs.

ONL Series

All new line of dual-column, horizontal and fully automatic bandsaws designed for cutting solid bars or bundles where high volume output is required (image shown is the high-speed version)

  • Read More

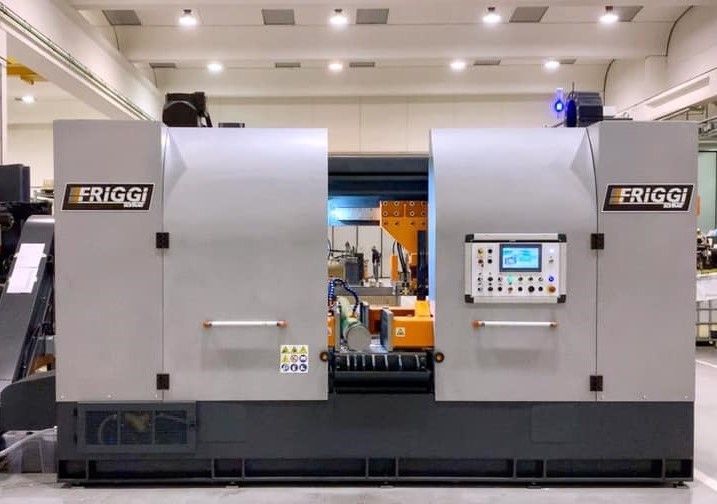

    ONL SERIES BANDSAW

    The ONL series provides leading-edge performance and extreme cutting accuracy even under the toughest conditions. The ONL has many features that make it an industry leader including, programmable multi-cutting and easy to use interface, low table for ease of loading/unloading material, can use carbide or bi-metal blades, overall heavy-duty build, proven performance and incredible accuracy. Capacities from 10”to 40”

––––– Quick Specs –––––

  • 460

    Cutting capacity (mm): 460x460

    Blade dimension (mm): 6410x41x1,3

    Blade speed (m/min): 15÷120

    Blade motor power (kW): 7,6

    Weight (Kg): 7000

  • 560

    Cutting capacity (mm): 560x600

    Blade dimension (mm): 8470x54x1,6

    Blade speed (m/min): 15÷120

    Blade motor power (kW): 11

    Weight (Kg): 7800

  • 660

    Cutting capacity (mm): 660x700

    Blade dimension (mm): 8660x54x1,6

    Blade speed (m/min): 15÷120

    Blade motor power (kW): 11

    Weight (Kg): 8500

  • 800

    Cutting capacity (mm): 800x850

    Blade dimension (mm): 9470x67x1,6

    Blade speed (m/min): 15÷120

    Blade motor power (kW): 18.5

    Weight (Kg): 13500

  • 850

    Cutting capacity (mm): 800x850

    Blade dimension (mm): 1850x100x1,1

    Blade speed (m/min): 20÷300

    Blade motor power (kW): 28

    Weight (Kg): 17000

  • 1000

    Cutting capacity (mm): 1000x1050

    Blade dimension (mm): 12050x67x1.6

    Blade speed (m/min): 15÷120

    Blade motor power (kW): 18.5

    Weight (Kg): 16000

the GANTRY

The large Gantry machine is the machine that best represents FRIGGI – all the features, automation, and performance bundled into excellence. Ideal for cutting ingots, forgings as well as large blocks of steel.

  • Read More

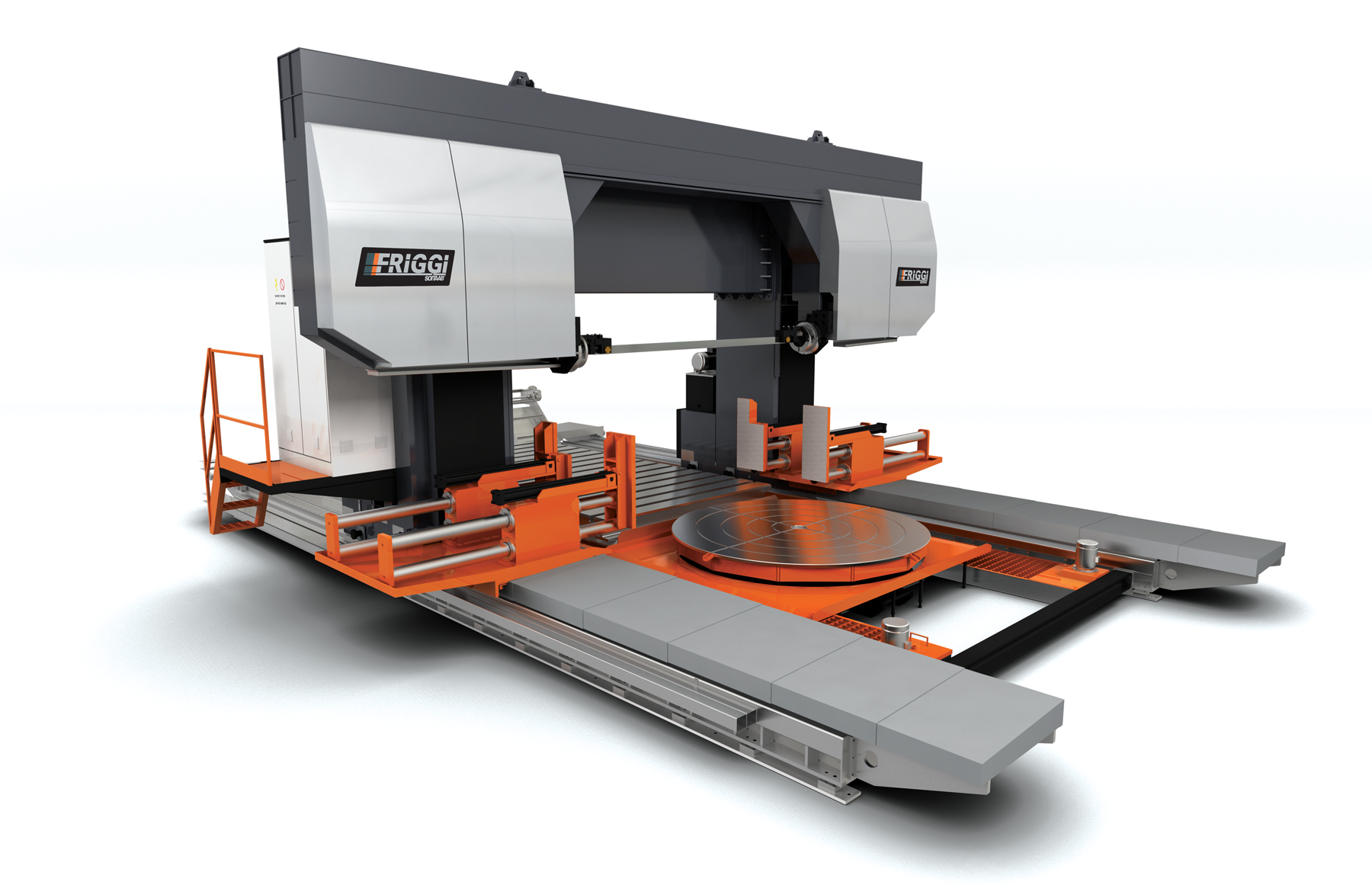

    THE GANTRY

    The Gantry features a fixed table and moving head designed for cutting very large, heavy material. This machine allows for vertical, horizontal, and angle cuts without having to move the material; a huge savings in time and costs. The flexibility of the moving head and rotating blade guides, along with the 360 degree turntable, allows you to easily make up to 9 cuts with a single set-up. Precision, performance and accuracy – all in one.


    Available in a variety of capacities:

––––– Quick Specs –––––

  • 1050

    Cutting capacity (mm): 1050x1050

    Head stroke (mm): 5000

    Blade dimension (mm): 11150x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (Kw): 20

    Weight (Kg): 21000

  • 1250

    Cutting capacity (mm): 1250x1250

    Head stroke (mm): 5000

    Blade dimension (mm): 12530x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (Kw): 20

    Weight (Kg): 24000

  • 1500

    Cutting capacity (mm): 1500x1500

    Head stroke (mm): 5000

    Blade dimension (mm): 15750x80x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (Kw): 30

    Weight (Kg): 37500

  • 2000

    Cutting capacity (mm): 2000x2000

    Head stroke (mm): 5000

    Blade dimension (mm): 17020x80x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (Kw): 30

    Weight (Kg): 42000

  • 2500x1500

    Cutting capacity (mm): 2500x1500

    Head stroke (mm): 5000

    Blade dimension (mm): 17750x80x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (Kw): 30

    Weight (Kg): 44000

  • 2500x2500

    Cutting capacity (mm): 2500x2500

    Head stroke (mm): 5000

    Blade dimension (mm): 18600x80x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (Kw): 30

    Weight (Kg): 50000

  • 3000x3000

    Cutting capacity (mm): 3000x3000

    Head stroke (mm): 5000

    Blade dimension (mm): 20430x80/100x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (Kw): 30

    Weight (Kg): 56000

  • 3500x3500

    Cutting capacity (mm): 3500x3500

    Head stroke (mm): 5000

    Blade dimension (mm): 22050x100x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (Kw): 30

    Weight (Kg): 61000

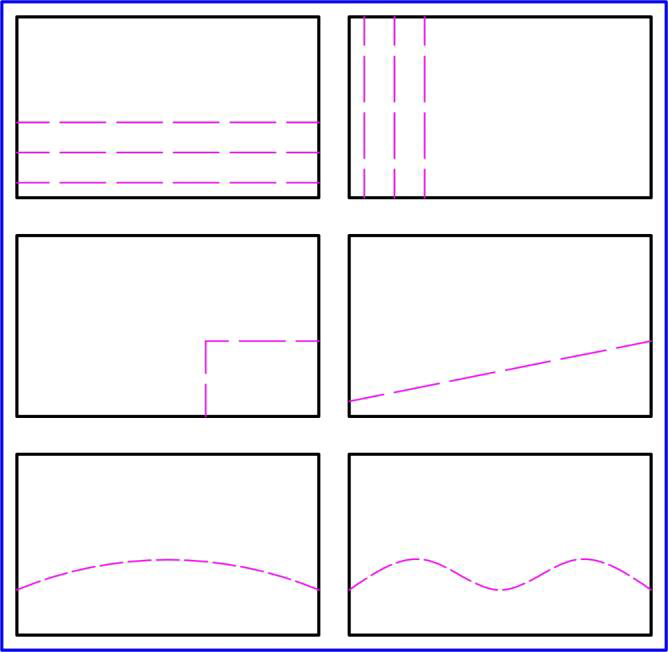

The SVC RADIUS is capable of cutting any of the following near net-zero shapes:

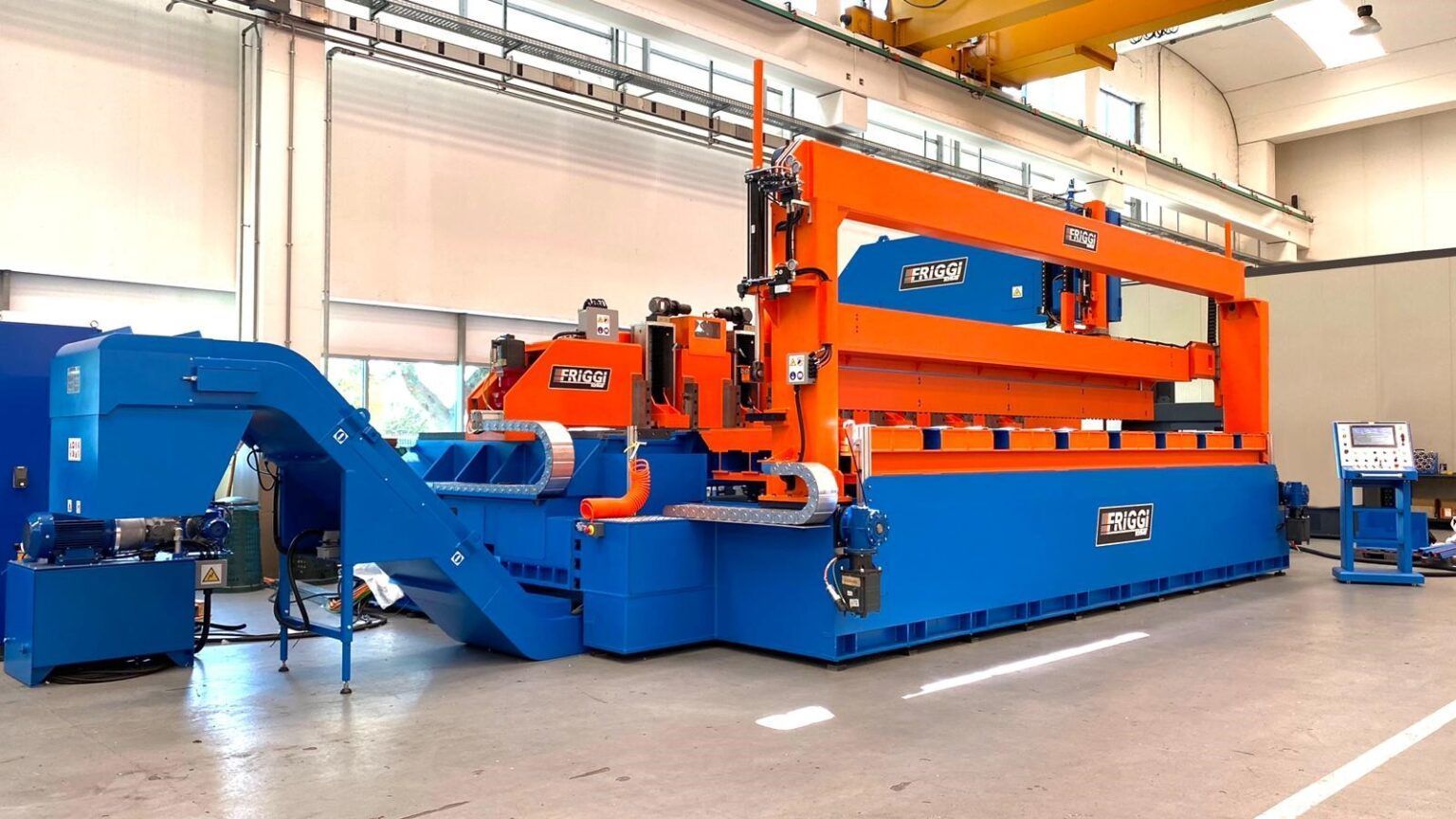

SVC RADIUS - CURVE CUTTING

The SVC Radius Cutting Saw will cut horizontally and vertically, fully automatic. So many features of this saw make it a true industry leader. Perfect for the aerospace industry, reduce milling & machining time by making near net-zero shapes on plate. Blade speeds available for cutting steel, specialty alloys, titanium, and in high-speed with carbide blade.

  • Read More

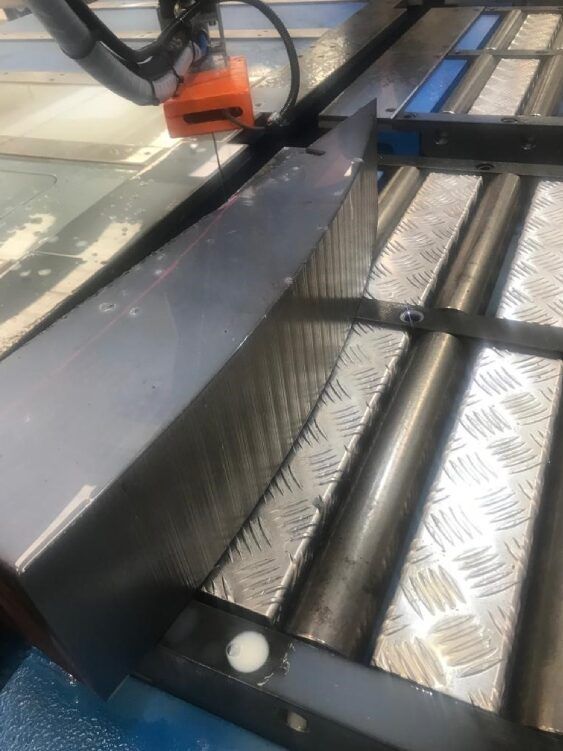

    SVC RADIUS – CURVE CUTTING

    The SVC Radius Cutting Saw will cut horizontally and vertically, fully automatic. So many features of this saw make it a true industry leader. Perfect for the aerospace industry, reduce milling & machining time by making near net-zero shapes on plate. Blade speeds available for cutting steel, specialty alloys, titanium, and in high-speed with carbide blade.

––––– Quick Specs –––––

  • 3500x3500

    Cutting capacity (mm): 2000x350 / 78”x13.75”

    Head stroke (mm): 6300 / 248”

    Blade dimension (mm): 41x1.3 / 1 ½”x .050”

    Hydraulic Motor (kw): 7.5 / 10 HP

    Blade motor power (Kw): 30 / 26.5 HP

    Weight (Kg): 45,000 / 99,000 lb

    **cutting capacity varies depending on client requirements

Friggi SC

Dual-column, horizontal, and fully automatic bandsaws designed for cutting solid bars where high volume output is required; also capable of cutting large, heavy materials.

  • Read More

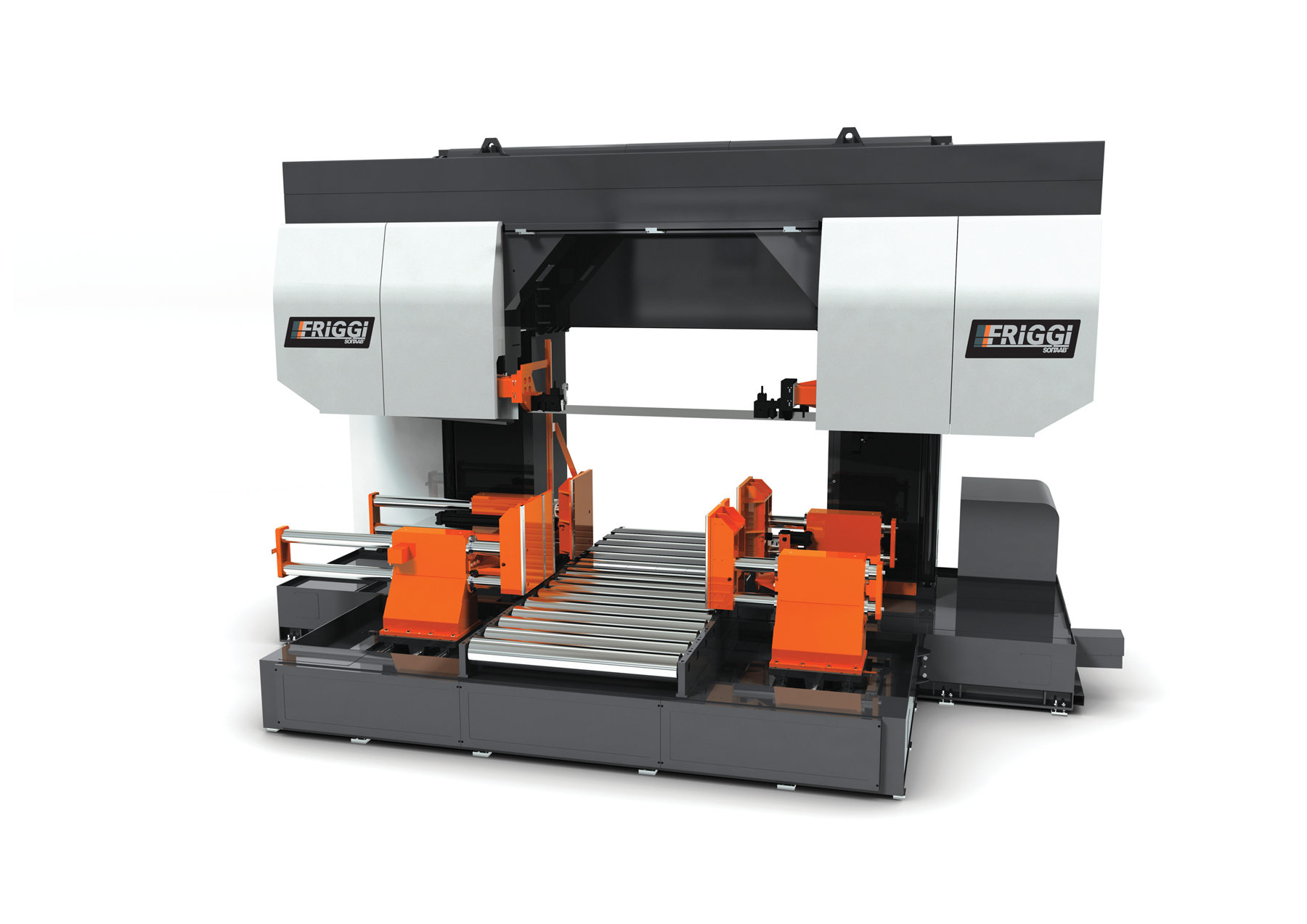

    FRIGGI SC AUTOMATIC BANDSAWS

    Dual-column, horizontal, and fully automatic bandsaws designed for cutting solid bars where high volume output is required; also capable of cutting large, heavy materials.


    These machines feature an advanced head feed system that continuously monitors cutting conditions for maximum efficiency. Machines feature brushless motors and ball screw feed to guarantee constant and precise head travel.


    This solution will provide industry-leading performance with great accuracy even on the most difficult materials. The SC horizontal bandsaws represent the values of our tradition; durability, proven performance, reliability, incredible accuracy, and low cost per cut.

––––– Quick Specs –––––

  • 550

    Cutting capacity (mm): 550×500

    Blade dimension (mm): 6900x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 9

    Weight (Kg): 7000

  • 1200×850

    Cutting capacity (mm): 1200x850

    Blade dimension (mm): 11400x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 15

    Weight (Kg): 12.000

  • 850

    Cutting capacity (mm): 850×850

    Blade dimension (mm): 9170x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 15

    Weight (Kg): 12500

  • 1050

    Cutting capacity (mm): 1050×1050

    Blade dimension (mm): 11150x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 15

    Weight (Kg): 17000

  • 1250

    Cutting capacity (mm): 1250×1250

    Blade dimension (mm): 12530x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 15

    Weight (Kg): 21000

  • 1500

    Cutting capacity (mm): 1500×1500

    Blade dimension (mm): 9170x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 30

    Weight (Kg): 12500

  • 2000×1500

    Cutting capacity (mm): 2000×1500

    Blade dimension (mm): 15530x80x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 30

    Weight (Kg): 39000

  • 2000×2000

    Cutting capacity (mm): 2000×2000

    Blade dimension (mm): 17020x80x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 34

    Weight (Kg): 42000

FRIGGI SV TS

The SV 640 TS is a vertical bandsaw with a moving table for use in varying applications; flexibility and simplicity at its best. This machine is designed for heavier loads.

  • Read More

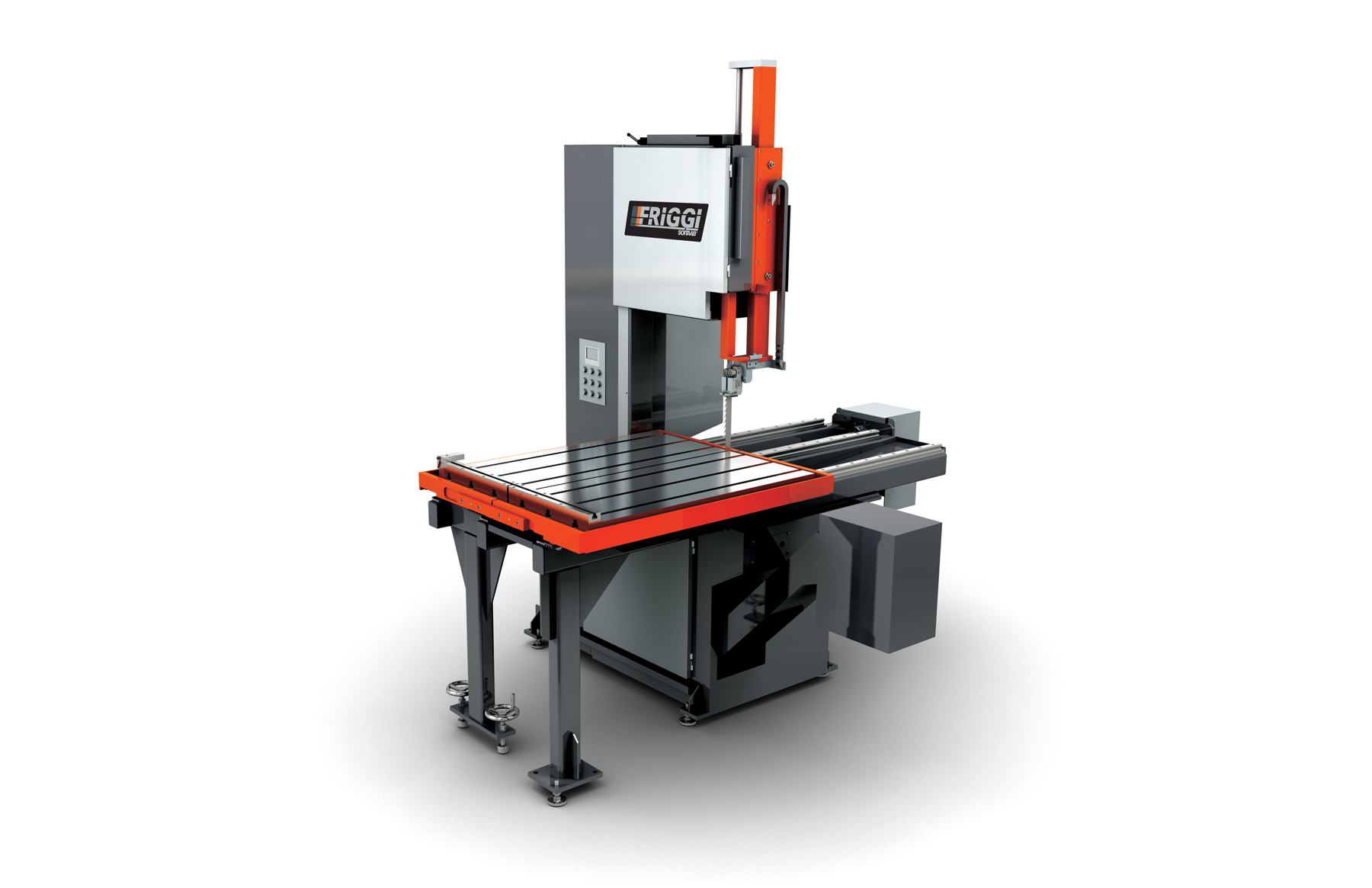

    FRIGGI VERTICAL BANDSAW – SV 640 TS

    The SV 640 TS is a vertical bandsaw with a moving table for use in varying applications; flexibility and simplicity at its best. This machine is designed for heavier loads. The material works its way through the saw by way of a moving table that runs along 4 linear way guides, driven by a ball screw and brushless motor. The table features “T” slots that allow for convenient clamping of any material, even irregular shapes.


    The overall robust build and advanced technology are the main features of this machine. Expect optimum performance both with bimetal and carbide blades.

    •  Simple to operate
    • Quick set-up
    • Notch cutting can be set-up as well
    • Load capacity up to 10 tons

––––– Quick Specs –––––

  • 750x800x1500

    Cutting capacity - vertical (mm): 800

    Cutting capacity - throat (mm): 750

    Table stroke (mm): 1500

    Blade dimension (mm): 6850x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 9,5

    Weight (Kg): 7000

  • 750x800x2500

    Cutting capacity - vertical (mm): 800

    Cutting capacity - throat (mm): 750

    Table stroke (mm): 2500

    Blade dimension (mm):  6850x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 9,5

    Weight (Kg): 9000

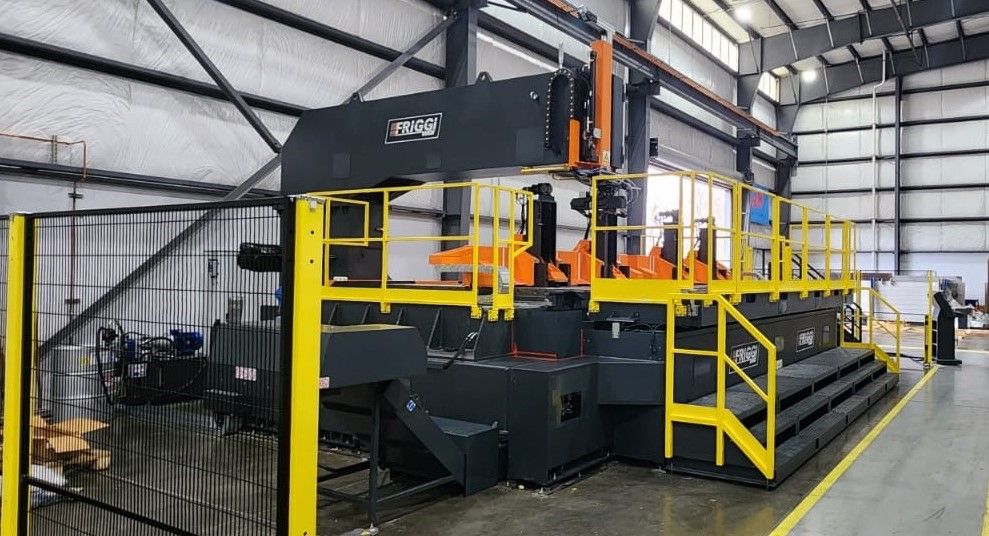

SVC Vertical/Horizontal

Thanks to the rotating blade guide system, horizontal and vertical cuts can be made without having to reposition the material. A huge savings in operator time and costs.

  • Read More

    FRIGGI VERTICAL/HORIZONTAL BANDSAW – SVC

    The SVC is a vertical bandsaw capable of cutting both horizontally and vertically. Thanks to the rotating blade guide system, horizontal and vertical cuts can be made without having to reposition the material. A huge savings in operator time and costs. All head movement and positioning is driven by a brushless motor.

    • Rotating blade guide
    • Vertical clamps
    • Blade speed for steel, titanium, or aluminum
    • Anti vibrations system – X-VIBE
    • Independent vices

––––– Quick Specs –––––

  • 6300x2000x600

    Cutting capacity - vertical (mm): 600

    Cutting capacity - throat (mm): 2000

    Head Stroke (mm): 6300

    Blade dimension (mm): 11800x41x1,3

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 13

    Weight (Kg): 40000

  • 6300x2500x600

    Cutting capacity - vertical (mm): 600

    Cutting capacity - throat (mm): 2500

    Head Stroke (mm): 6300

    Blade dimension (mm): 12600x41x1,3

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 13

    Weight (Kg): 42000

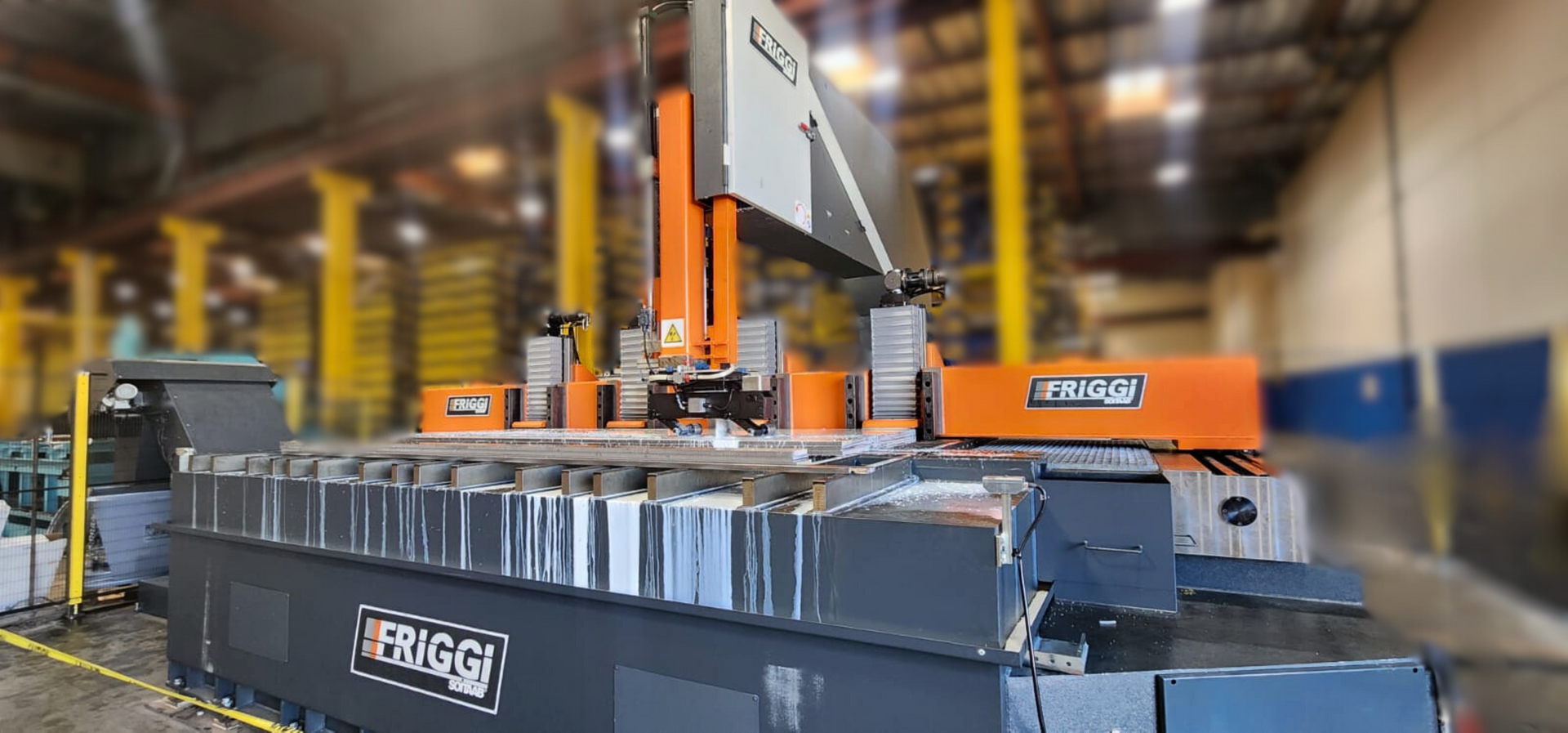

SVL FULLY PROGRAMMABLE

The SVL vertical bandsaw is designed for stripping plates and blocks. This machine features an advanced head feed system with a ball screw driven by a brushless motor.

  • Read More

    FRIGGI PROGRAMMABLE VERTICAL BAND ‑ DSVL

    The SVL vertical bandsaw is designed for stripping plates and blocks. This machine features an advanced head feed system with a ball screw driven by a brushless motor. Available in semi-automatic and fully-automatic.


    Programmable with multiple cuts on a single plate lights out operation with automatic 24-hour continuous operation.

––––– Quick Specs –––––

  • 3000x1000x650

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 1000

    Head stroke (mm): 3000

    Blade dimension (mm): 7930x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 9,5

    Weight (Kg): 15800

  • 3000x1500x650

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 1500

    Head stroke (mm): 3000

    Blade dimension (mm): 9660x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power ( kW ): 9,5

    Weight (Kg): 22000

  • 4000x1500x650

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 1500

    Head stroke (mm): 4000

    Blade dimension (mm): 9660x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power ( kW ): 9,5

    Weight (Kg): 26300

  • 4000x2000x650

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 2000

    Head stroke (mm): 4000

    Blade dimension (mm): 11640x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 9,5

    Weight (Kg): 28000

  • 6250x1500x650

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 1500

    Head stroke (mm): 6250

    Blade dimension (mm): 9660x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power ( kW ): 9,5

    Weight (Kg): 28500

  • 6300x2000x650

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 2000

    Head stroke (mm): 6250

    Blade dimension (mm): 11640x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power ( kW ): 9,5

    Weight (Kg): 40000

VAS H MOVING HEAD

The VAS H is a vertical bandsaw with a moving head and fixed worktable that is ideal for cutting large and heavy blocks. Easy material loading and large cutting capacity.

  • Read More

    FRIGGI MOVING HEAD BANDSAW – VAS H

    The VAS H is a vertical bandsaw with a moving head and fixed worktable that is ideal for cutting large and heavy blocks. Easy material loading and large cutting capacity allows flexibility to cut on one or more sides of the material. Ideal for steel service centers and die manufacturers as well as mold makers.

    • Simple operations
    • Convenient easy loading
    • Maximum load capacity

––––– Quick Specs –––––

  • 2500x650x900

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 900

    Head stroke (mm): 2500

    Blade dimension (mm): 6920x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 7,5

    Weight (Kg): 11000

  • 3000x1500x1200

    Cutting capacity - vertical (mm): 1500

    Cutting capacity - throat (mm): 1200

    Head stroke (mm): 3000

    Blade dimension (mm): 9370x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 18,5

    Weight (Kg): 42000

  • 4000x650x900

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 900

    Head stroke (mm): 4000

    Blade dimension (mm): 6920x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 7,5

    Weight (Kg): 14200

  • 6000x650x900

    Cutting capacity - vertical (mm): 650

    Cutting capacity - throat (mm): 900

    Head stroke (mm): 6000

    Blade dimension (mm): 6920x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 7,5

    Weight (Kg): 17400

  • 6250x1500x1200

    Cutting capacity - vertical (mm): 1500

    Cutting capacity - throat (mm): 1200

    Head stroke (mm): 6250

    Blade dimension (mm): 9370x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 18,5

    Weight (Kg): 56000

AST VERTICAL

Cross-cut head with a wide throat capacity that allows cross-cutting of large plates using a smaller blade than that of a traditional horizontal bandsaw, therefore reducing blade costs.

  • Read More

    FRIGGI VERTICAL METAL CUTTING BANDSAW - AST

    One of the main advantages of the Friggi VST vertical bandsaw is the cross-cut head with a wide throat capacity that allows for cross-cutting of large plates using a smaller blade than that of a traditional horizontal bandsaw, therefore reducing blade costs. This can be achieved because the blade is cutting across the smallest cross-section, height rather than width.


    The work table is equipped with heavy rollers that allow for easy movement and positioning of the material as required; saving operator time and costs. The AST is available in semi-automatic or fully automatic with a shuttle.

––––– Quick Specs –––––

  • 1200×400

    Cutting capacity - vertical (mm): 400

    Cutting capacity - throat (mm): 1200

    Blade dimension (mm): 6890x34x1,1

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 5,5

    Weight (Kg): 5500

  • 1500×600

    Cutting capacity - vertical (mm): 600

    Cutting capacity - throat (mm): 1500

    Blade dimension (mm): 9370x54x1,3

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 18,5

    Weight (Kg): 22300

  • 2000×600

    Cutting capacity - vertical (mm): 600

    Cutting capacity - throat (mm): 2000

    Blade dimension (mm): 10600x54x1,3

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 18,5

    Weight (Kg): 23000

  • 2500×1000

    Cutting capacity - vertical (mm): 1000

    Cutting capacity - throat (mm): 2500

    Blade dimension (mm): 10900x67x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 20,5

    Weight (Kg): 28000

Interested in our Products/Services?

We’re here to help!

We want to know your needs exactly so that we can provide the perfect solution. Let us know what you want and we’ll do our best to help.

Contact Us
Share by:
