Aluminum Cutting Solutions

Saws Designed For Maximum Performance

For Aluminum Applications

After decades of research, technical expertise and experience in sawing technology we now have a complete line of band and plate sawing machines designed specifically for cutting aluminum plates, blocks, and bars.


Our sophisticated and robust designs deliver cost-saving features such as our rotating blade guide system that allows you to make vertical, horizontal, and angle cuts without repositioning the material; rip and strip.


Highlights

  • Cutting speed for aluminium
  • ALL easy loading - unloading operations
  • Automatic cutting cycle
  • Hard metal blades
  • New HMI control with Wi-Fi technology

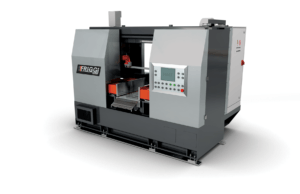

ONL-ALL AUTOMATIC DUAL

COLUMN BANDSAW

This dual-column, horizontal, and fully automatic bandsaw is designed for cutting solid bars or bundles where high volume output is required. Features the high-speed option for cutting aluminum.

  • Read More

    FRIGGI ONL

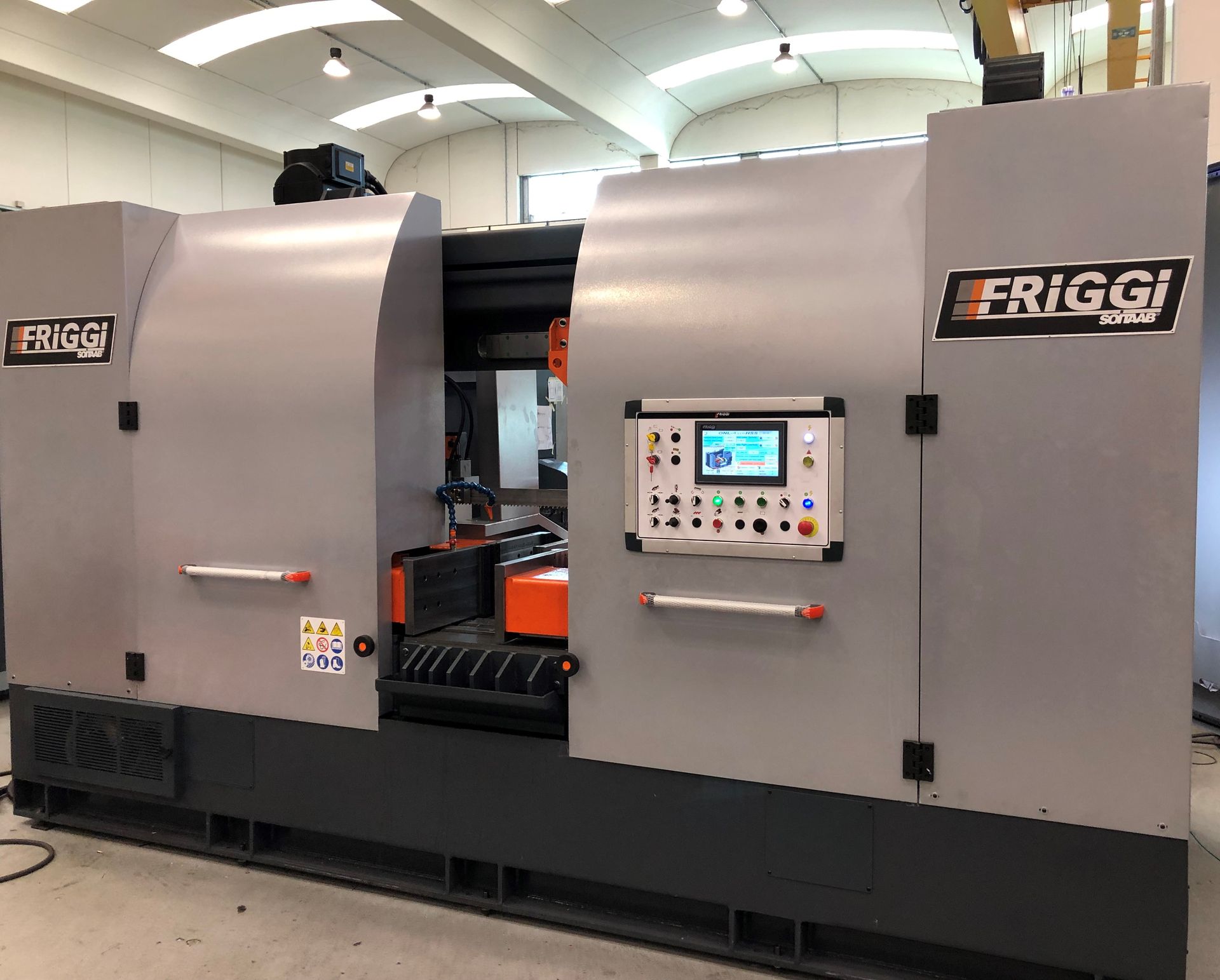

    FRIGGI AUTOMATIC DUAL COLUMN BANDSAW – ONL ALL

    This dual-column, horizontal and fully automatic bandsaw is designed for cutting solid bars or bundles where high volume output is required. It provides leading-edge performance and extreme cutting accuracy even under the toughest conditions. This machine features a hydraulic head feed controlled by a proportional valve.


    These are the attributes that place this bandsaw as an industry leader in its segment. The ONL Horizontal Bandsaw contains the typical values of our tradition; durability, proven performance, incredible accuracy, and a low cost per cut.

––––– Quick Specs –––––

  • 460

    Cutting capacity (mm): 460×460

    Blade dimension (mm): 8.470x41x1,3

    Blade speed (m/min): 300÷1200

    Blade motor power (kW): 11

    Weight (Kg): 7.800

  • 560

    Cutting capacity (mm): 560×600

    Blade dimension (mm): 8.660x41x1,3

    Blade speed (m/min): 300÷1200

    Blade motor power (kW): 11

    Weight (Kg): 8.500

  • 660

    Cutting capacity (mm): 660×700

    Blade dimension (mm): 8660.54.1,6

    Blade speed (m/min): 15÷120

    Blade motor power (kW): 11

    Weight (Kg): 8.500

  • 800

    Cutting capacity (mm): 800×850

    Blade dimension (mm): 9.470x67x1,6

    Blade speed (m/min): 15÷120

    Blade motor power (kW): 18.5

    Weight (Kg): 13.500

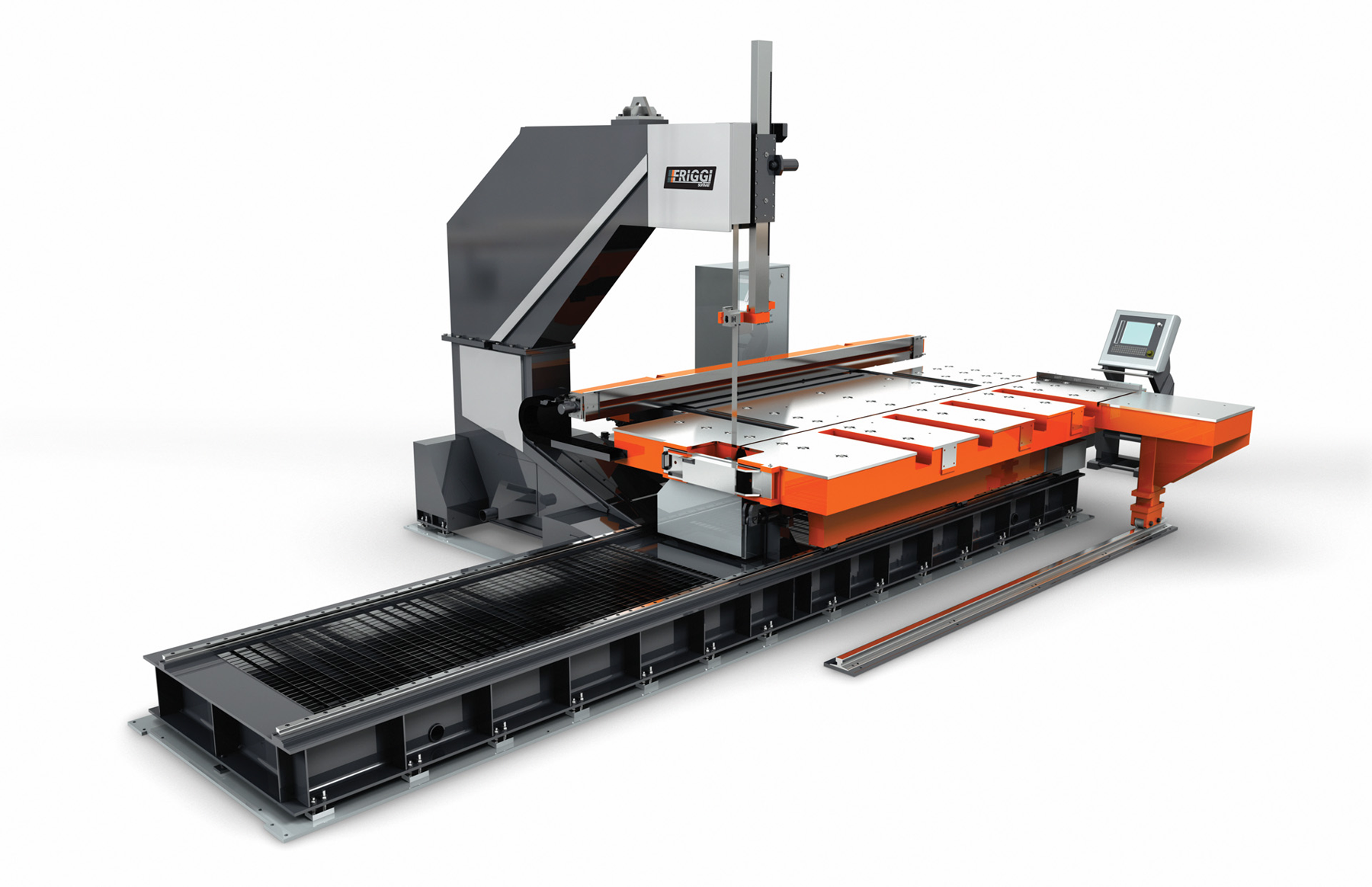

VTS MOVING TABLE BANDSAW

This bandsaw features a moving table designed specifically for cutting large aluminum plates.

  • Read More

    FRIGGI MOVING TABLE SAW – VTS

    FRIGGI VTS MOVING TABLE BANDSAWS

    This bandsaw features a moving table designed specifically for cutting large aluminum plates. Completely automatic and programmable. Once programmed, the machine will run without operator assistance.


    The table-top is equipped with hydraulic spheres resulting in extremely easy movement and positioning of material allowing for both transversal and longitudinal cuts. The reduced work table height also makes it easy on the operator for movement and positioning of material.


    Optional variable blade speed is available for cutting titanium and exotic alloys.

––––– Quick Specs –––––

  • 3000x1500x600

    Cutting capacity (mm): 600

    Throat (mm): 1.500

    Head stroke (mm): 3.000

    Blade dimension (mm): 8.700x41x1,3

    Blade speed (m/min): 300÷1.200

    Blade motor power (kW): 7,5

    Weight (Kg): 10.900

  • 4000x1500x600

    Cutting capacity (mm): 600

    Throat (mm): 1.500

    Head stroke (mm): 4.000

    Blade dimension (mm): 8.700x41x1,3

    Blade speed (m/min): 300÷1.200

    Blade motor power (kW): 7,5

    Weight (Kg): 12.400

  • 4100x1500x1150

    Cutting capacity (mm): 1.150

    Throat (mm): 1.500

    Head stroke (mm): 4.100

    Blade dimension (mm): 9.700x41x1,3

    Blade speed (m/min): 300÷1.200

    Blade motor power (kW): 9,5

    Weight (Kg): 14.400


  • 4100x1500x1500

    Cutting capacity (mm): 1.500

    Throat (mm): 1.500

    Head stroke (mm): 4.100

    Blade dimension (mm): 9.950x54x1,3

    Blade speed (m/min): 300÷1.200

    Blade motor power (kW): 9,5

    Weight (Kg): 18.500

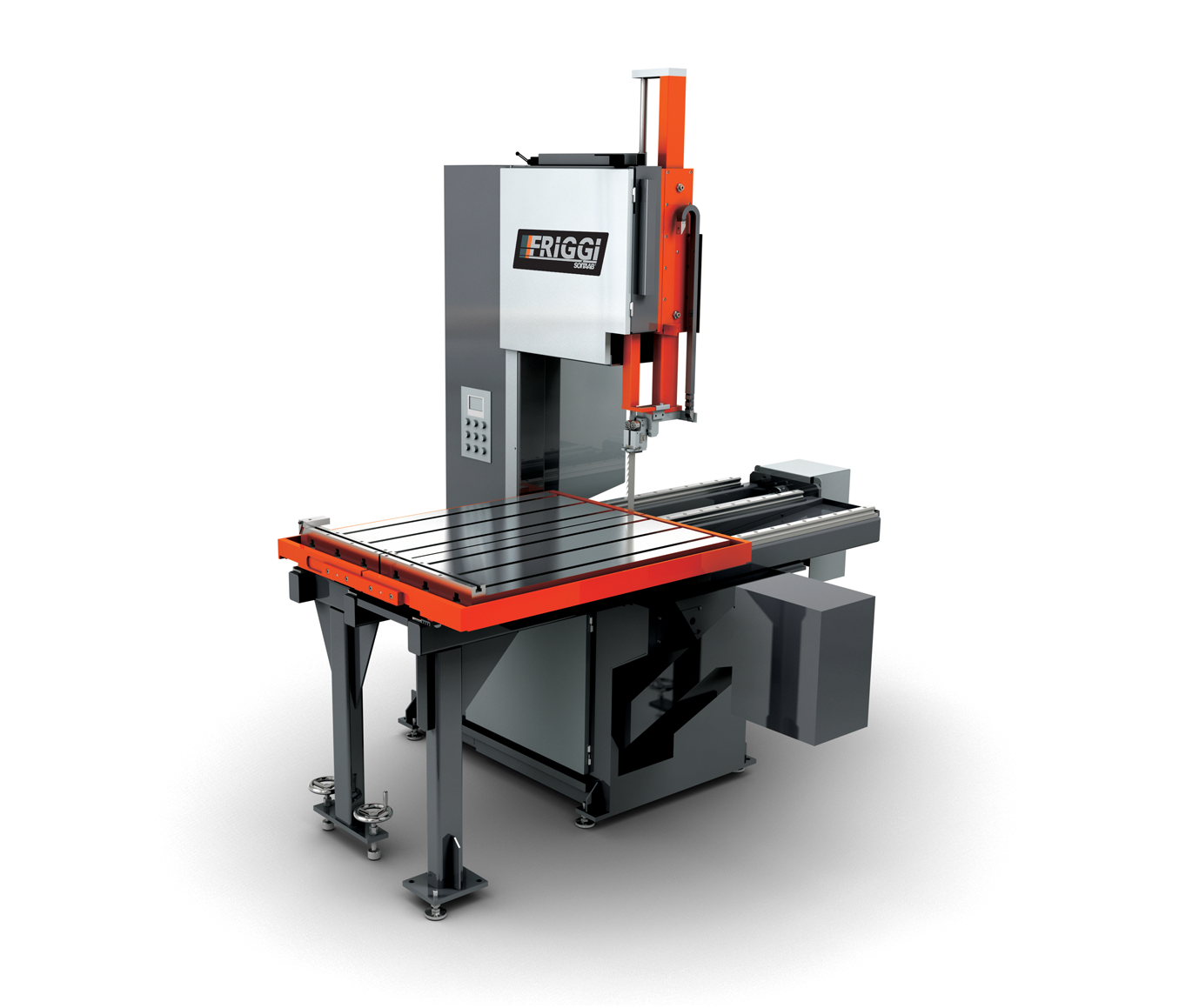

SV 640 TS

VERTICAL BANDSAW

SVTS is a vertical bandsaw with a moving table for use in varying applications; flexibility and simplicity at its best.

  • Read More

    FRIGGI VERTICAL BANDSAW – SV 640 TS

    FRIGGI SV 640 TS VERTICAL BANDSAW

    SVTS is a vertical bandsaw with a moving table for use in varying applications; flexibility and simplicity at its best. The material works its way through the saw by way of a moving table that runs along 3 linear way guides, driven by ballscrew and brushless motor. It is possible to cut irregular shapes with or without the use of clamping.


    The table features “T” slots that allow for convenient clamping of any material, even irregular shapes. The overall robust build and advanced technology are the main features of this machine. Expect optimum performance both with bimetal and carbide blades.

    • Simple to operate
    • Quick set-up
    • Notch cutting can be set-up as well

––––– Quick Specs –––––

  • 1500

    Cutting capacity (mm): 800

    Throat (mm): 750

    Table stroke (mm): 1500

    Blade dimension (mm): 6.850x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 9,5

    Weight (Kg): 7.000

  • 2500

    Cutting capacity (mm): 800

    Throat (mm): 750

    Table stroke (mm): 2500

    Blade dimension (mm): 6.850x54x1,6

    Blade speed (m/min): 10÷100

    Blade motor power (kW): 9,5

    Weight (Kg): 9.000

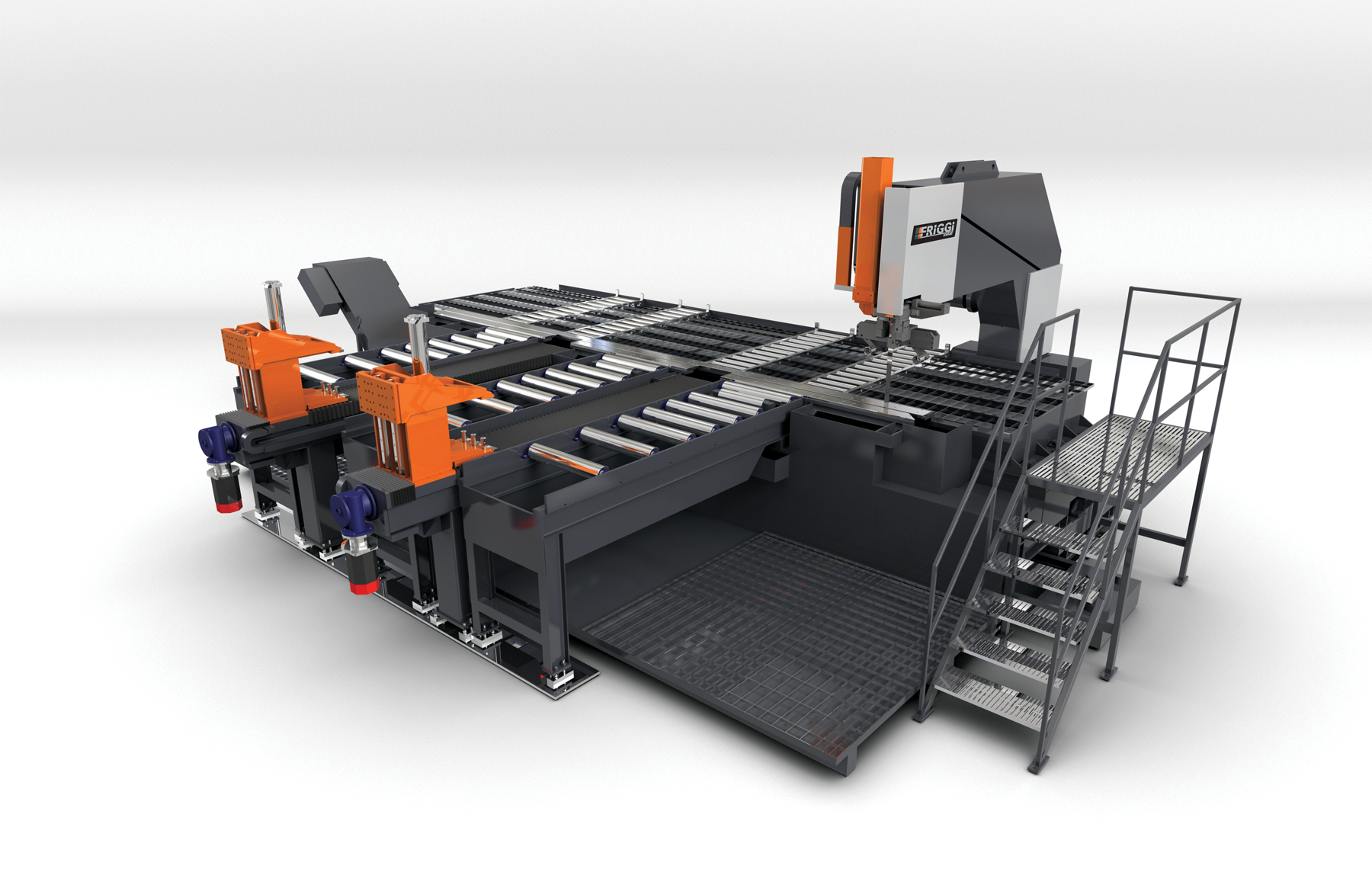

VAS OSF ALL

The sophisticated and robust rotating blade guide system allows you to cut both vertically and horizontally without repositioning the material; rip and strip.

  • Read More

    FRIGGI LARGE SAWING MACHINES – VAS OSF ALL

    FRIGGI LARGE SAWS – VAS OSF ALL

    Decades of experience and research in sawing technology and technical expertise has enabled us to give life to a large sawing machine designed specifically for cutting aluminum plates and aerospace alloys such as titanium, Inconel, and Hastelloy.


    The sophisticated and robust rotating blade guide system allows you to cut both vertically and horizontally without repositioning the material; rip and strip. A huge savings in operator time and material handling costs. This machine is also equipped with vertical locking vises that allows cutting of multiple plates at one time.

––––– Quick Specs –––––

  • 6250x300x2000

    Cutting capacity (mm): 300

    Throat (mm): 2.000

    Head stroke (mm): 6.250

    Blade dimension (mm): 9.360x41x1,3

    Blade speed (m/min): 300÷1.200

    Blade motor power (kW): 18,5

    Weight (Kg): 30.500

  • 8250x300x2000

    Cutting capacity (mm): 300

    Throat (mm): 2.000

    Head stroke (mm): 8.250

    Blade dimension (mm): 9.360x41x1,3

    Blade speed (m/min): 300÷1.200

    Blade motor power (kW): 18,5

    Weight (Kg): 44.600

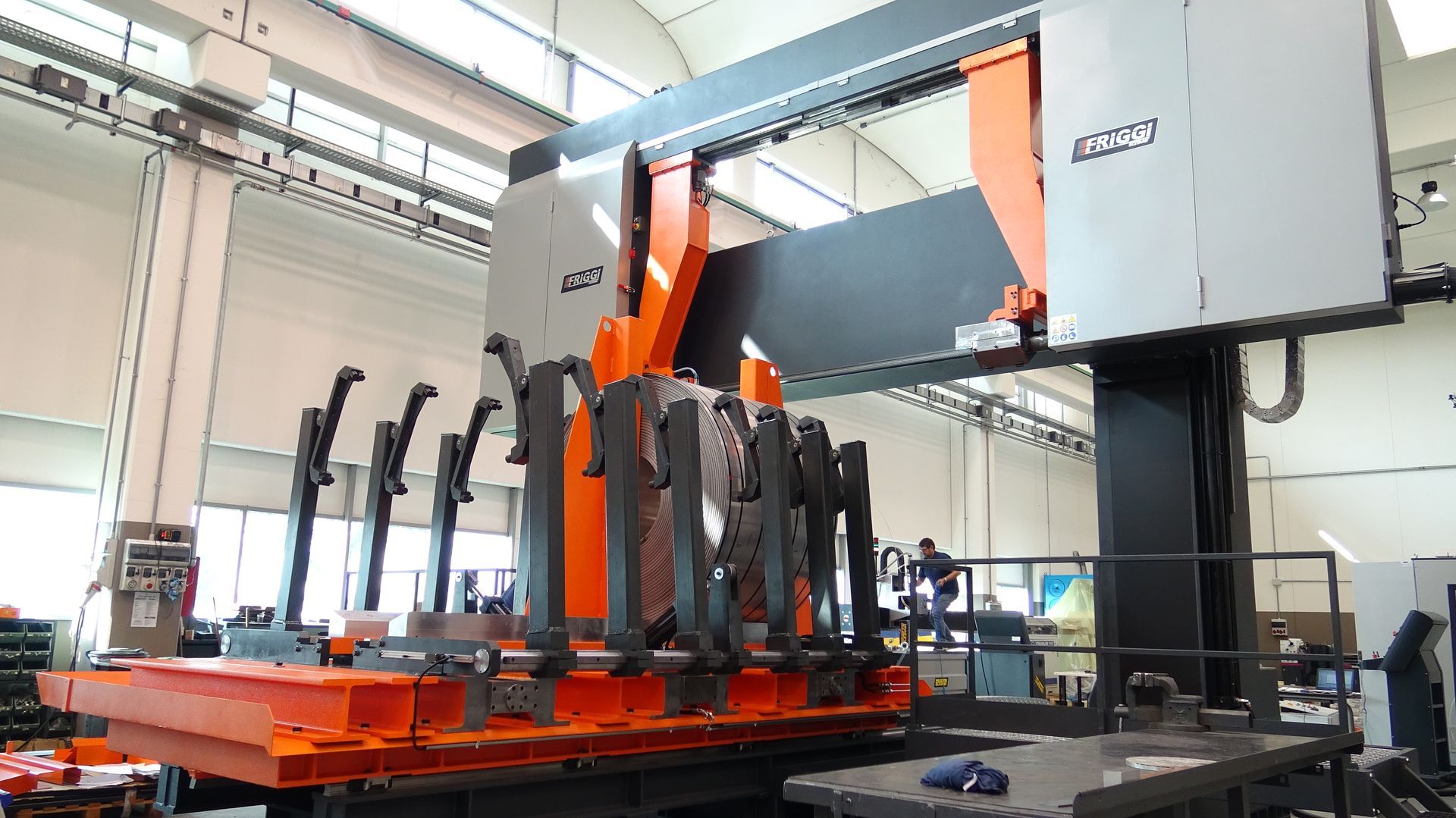

MF COILS - ALUMINUM

COIL SAW

The Friggi 2MF Coils is a sliding table bandsaw designed for cutting aluminum coils.

  • Read More

    FRIGGI SLIDING TABLE BANDSAW – 2MF COILS

    FRIGGI 2MF COILS – SLIDING TABLE BANDSAW

    The Friggi 2MF COILS is a sliding table bandsaw designed for cutting aluminum coils.


    Thanks to the specially designed panel, positioning and clamping of the material is done with minimal effort. The patented lubrication system will keep the material dry and prevents the deposit of oil residues.


    For more information, call Friggi America at (519) 421 9291

––––– Quick Specs –––––

  • Technical Information

    Cutting capacity (mm): 2000×2000

    Table stroke (mm): 3000

    Blade dimension (mm): 14.620x54x1,6

    Blade speed (m/min): 300÷600

    Blade motor power ( kW ): 18,5

    Weight (Kg): 27.000

  • Highlights

    • Excellent cut piece
    • Tight tolerances
    • Heavy-duty vices
    • Precise material alignment
    • Raised table support for easy material loading
    • Dry cut
